Vibration Test Systems 22 kN to 70 kN

Electrodynamic shaker with sine force of 35 kN
Electrodynamic shaker with sine force of 35 kN

  • Electrodynamic shaker with trunnion
  • Power save function (field power reduction)
  • Optional Dual Bearing-System for enhancement of cross axial stiffness and reduction of wear (larger or equal to 27 kN)
  • Air glide option (shaker is displaceable on air cushions)
  • Multiple safety devices
  • Clamping table (Armature) ø340 mm, ø440 mm or ø640 mm
  • Designed for Long-time operation
  • Minimum maintenance effort
  • High cross-axial stiffness
  • Mounted pivotable in a rugged trunnion with combined rubber/air isolators
  • up to 76.2 mm (3“) displacement
  • Automatic centering of the AIT-system and the armature
  • AIT-system fixable to use the full displacement also at low frequencies and heavy loads
  • Fully automatic pneumatic load compensation for heavy test loads
  • Air-cooling blower with optional fan speed control
  • Available as RIT, AIT or LB trunnion system* (smaller or equal to 35 kN)
  • Degauss kit to reduce stray magnetic field (optional low degaussing for further reduction)

Vibration Test System TV 59322/*-340 (Rated force 22 kN)

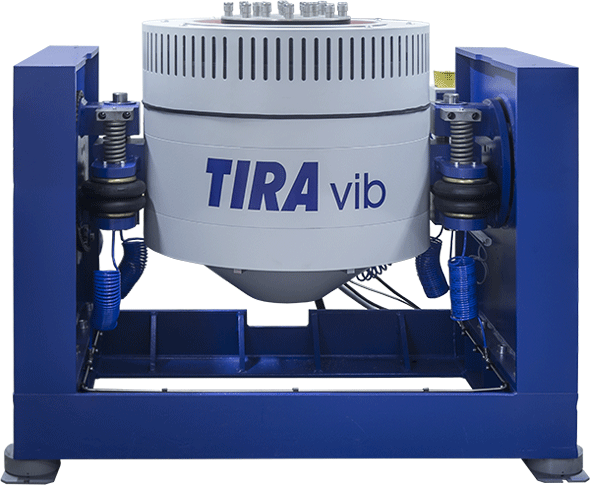

Electrodynamic shaker S 59322AIT-340 with sine force of 22 kN
Rated force Sinepk/RandomRMS/Shockpk: 22000/17000/66000 N
Frequency range: 5 – 3000 Hz
Main resonance frequency: > 2250 Hz
Max. displacement Sine/Random/Shock Pk-Pk: 63.5/63.5/76.2 mm
Max. acceleration Sine/Random/Shock: 80/55/200 g
Total mass of shaker: bis zu 2000 kg
Dimensions of shaker WxHxD: 1384 x 1182 x 963 mm
Armature diameter: 340 mm
Max. power consumption Amplifier/Blower: 29/17.5 kVA
Data sheet TV 59322/*-340 (Rated force 22 kN)

Vibration Test System TV 59322/*-440 (Rated force 22 kN)

Electrodynamic shaker S 59322AIT-440 with sine force of 22 kN
Rated force Sinepk/RandomRMS/Shockpk: 22000/17000/66000 N
Frequency range: 5 – 3000 Hz
Main resonance frequency: > 2250 Hz
Max. displacement Sine/Random/Shock Pk-Pk: 63.5/63.5/76.2 mm
Max. acceleration Sine/Random/Shock: 80/55/200 g
Total mass of shaker: bis zu 2000 kg
Dimensions of shaker WxHxD: 1384 x 1182 x 963 mm
Armature diameter: 440 mm
Max. power consumption Amplifier/Blower: 29/17.5 kVA
Data sheet TV 59322/*-440 (Rated force 22 kN)

Vibration Test System TV 59327/*-340 (Rated force 27 kN)

Electrodynamic shaker S 59327AIT-340 with sine force of 27 kN
Rated force Sinepk/RandomRMS/Shockpk: 27000/27000/80000 N
Frequency range: 5 – 3000 Hz
Main resonance frequency: > 2400 Hz
Max. displacement Pk-Pk: 50.8 mm
Max. acceleration Sine/Random/Shock: 84/65/167 g
Total mass of shaker: bis zu 2700 kg
Dimensions of shaker WxHxD: 1544 x 1212 x 924 mm
Armature diameter: 340 mm
Max. power consumption amplifier/blower: 30/17.5 kVA
Data sheet TV 59327/*-340 (Rated force 27 kN)

Vibration Test System TV 59327/*-440 (Rated force 27 kN)

Electrodynamic shaker S 59327AIT-440 with sine force of 27 kN
Rated force Sinepk/RandomRMS/Shockpk: 27000/27000/80000 N
Frequency range: 5 – 3000 Hz
Main resonance frequency: > 2400 Hz
Max. displacement Pk-Pk: 50.8 mm (optional 76.2 mm)
Max. acceleration Sine/Random/Shock: 79/50/158 g
Total mass of shaker: bis zu 2700 kg
Dimensions of shaker WxHxD: 1544 x 1235 x 924 mm
Armature diameter: 440 mm
Max. power consumption amplifier/blower: 30/17.5 kVA
Data sheet TV 59327/*-440 (Rated force 27 kN)

Vibration Test System TV 59327/*-640 (Rated force 27 kN)

Electrodynamic shaker S 59327AIT-640 with sine force of 27 kN
Rated force Sinepk/RandomRMS/Shockpk: 27000/27000/80000 N
Frequency range: 5 – 2000 Hz
Main resonance frequency: > 1900 Hz
Max. displacement Pk-Pk: 50.8 mm
Max. acceleration Sine/Random/Shock: 66/50/131 g
Total mass of shaker: bis zu 2700 kg
Dimensions of shaker WxHxD: 1544 x 1246 x 924 mm
Armature diameter: 640 mm
Max. power consumption amplifier/blower: 30/17.5 kVA
Data sheet TV 59327/*-640 (Rated force 27 kN)

Vibration Test System TV 59335/*-340 (Rated force 35 kN)

Electrodynamic shaker S 59335AIT-340 with sine force of 35 kN
Rated force Sinepk/RandomRMS/Shockpk: 35000/32000/105000 N
Frequency range: 5 – 3000 Hz
Main resonance frequency: > 2400 Hz
Max. displacement Pk-Pk: 50.8 mm
Max. acceleration Sine/Random/Shock: 100/88/220 g
Total mass of shaker: bis zu 2700 kg
Dimensions of shaker WxHxD: 1544 x 1212 x 924 mm
Armature diameter: 340 mm
Max. power consumption amplifier/blower: 32/17.5 kVA
Data sheet TV 59335/*-340 (Rated force 35 kN)

Vibration Test System TV 59335/*-440 (Rated force 35 kN)

Electrodynamic shaker S 59335AIT-440 with sine force of 35 kN
Rated force Sinepk/RandomRMS/Shockpk: 35000/32000/105000 N
Frequency range: 5 – 3000 Hz
Main resonance frequency: > 2400 Hz
Max. displacement Pk-Pk: 50.8 mm (optional 76.2 mm)
Max. acceleration Sine/Random/Shock: 100/67/207 g
Total mass of shaker: bis zu 2700 kg
Dimensions of shaker WxHxD: 1544 x 1235 x 924 mm
Armature diameter: 440 mm
Max. power consumption amplifier/blower: 32/17.5 kVA
Data sheet TV 59335/*-440 (Rated force 35 kN)

Vibration Test System TV 59335/*-640 (Rated force 35 kN)

Electrodynamic shaker S 59335AIT-640 with sine force of 35 kN
Rated force Sinepk/RandomRMS/Shockpk: 35000/32000/105000 N
Frequency range: 5 – 2000 Hz
Main resonance frequency: 2000 Hz
Max. displacement Pk-Pk: 50.8 mm
Max. acceleration Sine/Random/Shock: 70/63/160 g
Total mass of shaker: bis zu 2700 kg
Dimensions of shaker WxHxD: 1544 x 1246 x 924 mm
Armature diameter: 640 mm
Max. power consumption amplifier/blower: 32/17.5 kVA
Data sheet TV 59335/*-640 (Rated force 35 kN)

Vibration Test System TV 59349/AIT-480 (Rated force 49.5 kN)

Electrodynamic shaker S 59349AIT-440 with sine force of 49 kN
Rated force Sinepk/RandomRMS/Shockpk: 49500/48000/148500 N
Frequency range: 5 – 2500 Hz
Main resonance frequency: > 2100 Hz
Max. displacement Sine/Random/Shock (Pk-Pk): 63.5/63.5/76.2 mm
Max. acceleration Sine/Random/Shock: 91/75/224 g
Total mass of shaker: 4800 kg
Dimensions of shaker WxHxD: 1672 x 1349 x 1166 mm
Armature diameter: 480 mm
Max. power consumption amplifier/blower: 56/27 kVA
Data sheet TV 59349/AIT-480 (Rated force 49.5 kN)

Vibration Test System TV 59356/AIT-480 (Rated force 56 kN)

Electrodynamic shaker S 59356AIT-480 with sine force of 56 kN
Rated force Sinepk/RandomRMS/Shockpk: 56000/56000/160000 N
Frequency range: 5 – 2500 Hz
Main resonance frequency: > 2100 Hz
Max. displacement Sine/Random/Shock (Pk-Pk): 63.5/63.5/76.2 mm
Max. acceleration Sine/Random/Shock: 100/80/350 g
Total mass of shaker: 4800 kg
Dimensions of shaker WxHxD: 1672 x 1349 x 1166 mm
Armature diameter: 480 mm
Max. power consumption amplifier/blower: 66/27 kVA
Data sheet TV 59356/AIT-480 (Rated force 56 kN)

Vibration Test System TV 59370/AIT-480 (Rated force 70 kN)

Electrodynamic shaker S 59370AIT-480 with sine force of 70 kN
Rated force Sinepk/RandomRMS/Shockpk: 70000/67000/210000 N
Frequency range: 5 – 2500 Hz
Main resonance frequency: > 2100 Hz
Max. displacement Sine/Random/Shock Pk-Pk: 63.5/63.5/76.2 mm
Max. acceleration Sine/Random/Shock: 100/80/350 g
Total mass of shaker: 4020 kg
Dimensions of shaker WxHxD: 1672 x 1349 x 1166 mm
Armature diameter: 480 mm
Max. power consumption amplifier/blower: 82/30 kVA
Data sheet TV 59370/AIT-480 (Rated force 70 kN)
