Power Amplifiers
- Designed with state-of-the-art MOSFET transistors
- Sine output power up to 1300 VA
- Selectable operation in current or voltage mode
- Backgroundlit multifunctional display
- Safety management system monitors temperature, overcurrent, clipping and overtravel
- High Signal to noise ratio of up to >100 dB
- Low distortion factor of up to <0.05%
- Monitoring outputs for voltage and current
- Selectable operation voltage range (factory-preset: 100V, 120V, 230V)
- Adjustable current limit
- Operation with all permanent magnet driven shakers on the market
- Optional connection for zero-point regulation (TMC) (for BAA 500 and up)
Amplifier BAA 120 (Sine output power 120 VA)
| Max. sine output powerRMS: | 120 VA |
| Frequency range (small signal / full power): | DC – 100 kHz / 40 Hz - 25 kHz |
| Total mass: | 9 kg |
| Dimensions WxHxD: | 440 x 90 x 290 mm |
| Data Sheet Amplifier BAA 120 |
Amplifier BAA 500 (Sine output power 500 VA)
| Max.sine output powerRMS: | 500 VA |
| Frequency range (small signal / full power): | DC – 180 kHz / 20 Hz - 25 kHz |
| Total mass: | 18 kg |
| Dimensions WxHxD: | 440 x 90 x 290 mm |
| Data Sheet Amplifier BAA 500 |
Amplifier BAA 500-T (Sine output power 500 VA)
with zero-point regulation
| Max. sine output powerRMS: | 500 VA |
| Frequency range (small signal / full power): | 1 Hz – 180 kHz / 20 Hz - 25 kHz |
| Total mass: | 22 kg |
| Dimensions WxHxD: | 440 x 150 x 450 mm |
| Data Sheet Amplifier BAA 500-T |
Amplifier BAA 500-MSC (Sine output power 500 VA)
with blower control for internal shaker cooling
| Max. sine output powerRMS: | 500 VA |
| Frequency range (small signal / full power): | DC – 180 kHz / 20 Hz - 25 kHz |
| Total mass: | 37 kg |
| Dimensions WxHxD: | 562 x 211 x 550 mm |
| Data Sheet Amplifier BAA 500-MSC |
Amplifier BDA 1300 (Sine output power 1300 VA)
| Sine output powerRMS: | 1300 VA |
| Frequency range: | DC – 25000 Hz |
| Total mass: | 22 kg |
| Dimensions WxHxD: | 440 x 100 x 500 mm |
| Data Sheet Amplifier BDA 1300 |
Amplifier BDA 1300-E (Sine output power 1300 VA)
with external field power supply
| Sine output powerRMS: | 1300 VA |
| Frequency range: | DC – 25000 Hz |
| Total mass: | 39 kg |
| Dimensions WxHxD: | 440 x 200 x 500 mm |
| Data Sheet Amplifier BDA 1300-E |

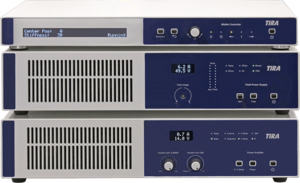

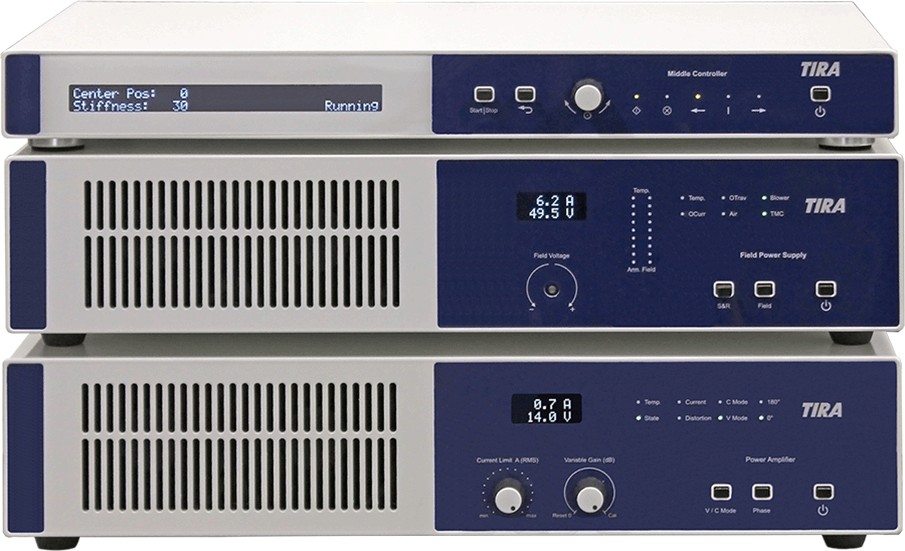

Amplifier BDA 1300-ET (Sine output power 1300 VA)
with external field power supply and zero-point regulation
| Sine output powerRMS: | 1300 VA |
| Frequency range: | 2 – 25000 Hz |
| Total mass: | 43 kg |
| Dimensions WxHxD: | 440 x 260 x 500 mm |
| Data Sheet Amplifier BDA 1300-ET |
