Modal-Vibration Test Systems 4 kN to 15 kN
- High cross-axial stiffness
- 100 mm displacement
- Electronic zero-point regulation for precisely coupling the shaker to the specimen
- Electronically adjustable stiffness

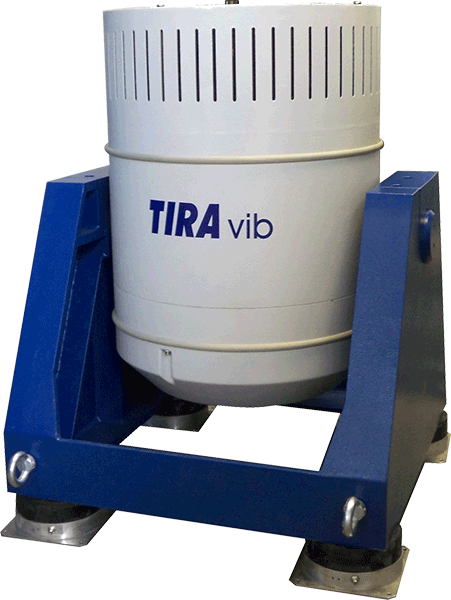

Modal-Vibration Test System TV 55240-M/LSS (Rated force 4 kN)
| Rated force Sinepk /RandomRMS: | 4000/3400 N |
| Frequency range: | 1 – 2000 Hz |
| Main resonance frequency: | > 2500 Hz |
| Max. displacement Pk-Pk: | 100 mm |
| Total mass of shaker with trunnion: | 800 kg |
| Dimensions of shaker WxHxD: | 730 x 1020 x 700 mm |
| Coupling: | M10 |
| Max. power consumption incl. blower: | 17 kVA |
| Data sheet TV 55240-M/LSS (Rated force 4 kN) |
Modal-Vibration Test System TV 56280-M/LSS (Rated force 8 kN)
| Rated force Sinepk /RandomRMS: | 8000/6000 N |
| Frequency range: | 1 – 2000 Hz |
| Main resonance frequency: | > 2500 Hz |
| Max. displacement Pk-Pk: | 100 mm |
| Total mass of shaker with trunnion: | 850 kg |
| Dimensions of shaker WxHxD: | 774 x 1030 x 745 mm |
| Coupling: | M10 |
| Max. power consumption incl. blower: | 17 kVA |
| Data sheet TV 56280-M/LSS (Rated force 8 kN) |
Modal-Vibration Test System TV 57315-M/LSS (Rated force 15 kN)
| Rated force Sinepk /RandomRMS: | 15000/11000 N |
| Frequency range: | 1 – 2000 Hz |
| Main resonance frequency: | > 2500 Hz |
| Max. displacement Pk-Pk: | 100 mm |
| Total mass of shaker with trunnion: | 1200 kg |
| Dimensions of shaker WxHxD: | 875 x 1118 x 775 mm |
| Coupling: | M10 |
| Max. power consumption incl. blower: | 31 kVA |
| Data sheet TV 57315-M/LSS (Rated force 15 kN) |
